MRL Lift
MRL Lift

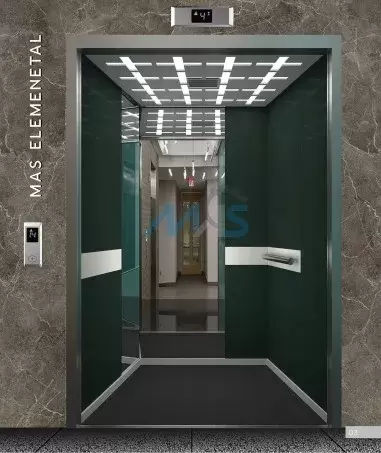

A Passenger elevator is designed to carry people and small Packages. Passenger elevator capacity is related to the available Floor space. Passenger elevators may be specialized for the service they perform. Residential elevators may be small enough for one person while some are large enough for more than a dozen.
Passenger Elevators Dimension
| Capacity | Passenger | Shaft Inside Size | Car Inside Size | Door Opening | Machine Room Size | ||||
|---|---|---|---|---|---|---|---|---|---|
| Width | Depth | Width | Depth | Width | Depth | ||||
| 1. | 272 kg | 4 | 1350 | 1250 | 800 | 800 | 600 | 2200 | 2200 |
| 2. | 408 kg | 6 | 1550 | 1500 | 1000 | 1000 | 760 | 2500 | 2500 |
| 3. | 544Kg | 8 | 1800 | 1800 | 1200 | 1200 | 800 | 2800 | 2800 |
| 4. | 680kg | 10 | 2000 | 2000 | 1400 | 1400 | 800 | 3000 | 3000 |
| 5. | 816 kg | 12 | 2400 | 1650 | 1900 | 1100 | 900 | 3500 | 3000 |
| 6. | 1088kg | 16 | 2500 | 2100 | 2000 | 1300 | 1000 | 4000 | 4000 |
| 7. | 1360kg | 20 | 2500 | 2400 | 2000 | 1550 | 1000 | 4000 | 4500 |
Note :-
- All Dimension mm
- Pit- 1500mm
- Over Head -4200mm
