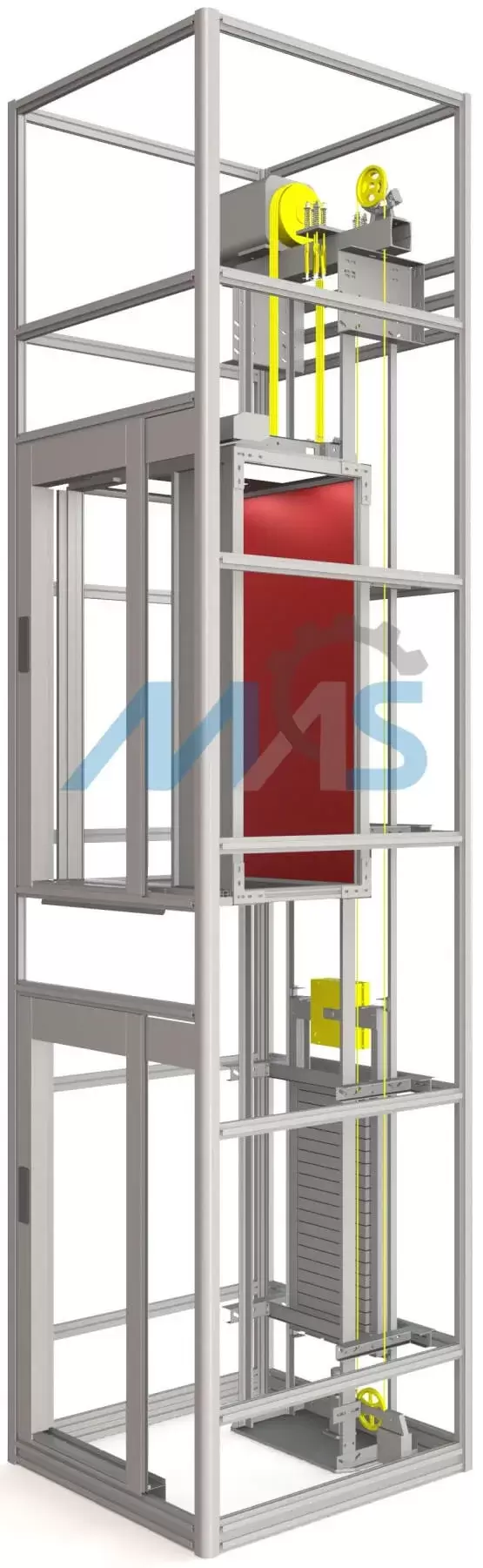

Car Elevators
Car Elevators
Aviva Goods Lift is fully compliant with Machinery Directive 2006/42/EC Aviva Industrial Lift is a dependable working tool, characterized by its reliable performance & endurance under harsh working conditions.

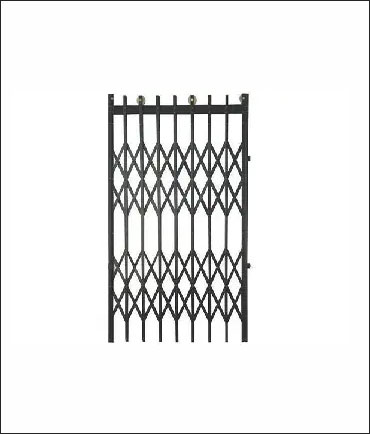

The Capacity ranges from 500kg to 7000 kg depending upon the requirement. There are also a variety of door types available such as collapsible gates and automatic doors.
etc. option for car elevators is also available to be used in multi-story Parking.
- High Strength
- High Capacity
- Can bear heavy load
- Made from High-grade material
Industrial Goals Elevators Dimension
| Capacity | Shaft Inside Size | Car Inside Size | Door Opening | Machine Room Size | ||||
|---|---|---|---|---|---|---|---|---|
| Width | Depth | Width | Depth | Width | Depth | |||
| 1. | 500 | 1800 | 2500 | 1000 | 2200 | 800 | 2800 | 3500 |
| 2. | 1020 | 1900 | 3000 | 1000 | 2400 | 900 | 3000 | 4000 |
| 3. | 1360 | 2300 | 3000 | 1300 | 2400 | 900 | 3500 | 4000 |
| 4. | 1768 | 2600 | 3000 | 1600 | 2400 | 1000 | 4000 | 4000 |
Note :-
- All Dimension mm
- Pit -1600mm
- Over Head -4800mm
